Press, Connecting Rod, Straightening
The Straightening Press is used to straighten and remove twist from engine connecting rods.
Part Number: 8805
National Stock Number (NSN): 4940-00-449-7293
Dimensions: 33" High x 16" Wide x 12.5" Deep
Net Weight: 220 lbs (100 kg)Email For More Info

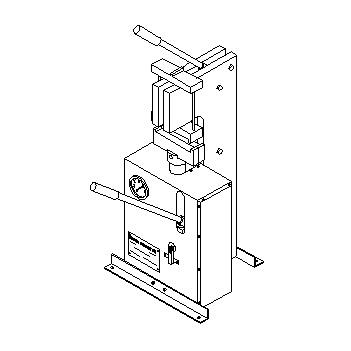

The Straightening Press is used to straighten and remove twist from engine connecting rods. It meets all requirements of military specification MIL-P-45051D(AL). The Press consists of a steel "C" frame assembly which contains a hydraulic ram, handpump assembly and special anvils which are used to straighten connecting rods. An instrument panel on the front machine contains a pressure gauge which indicates the ram force in tons and the oil pressure in pounds per square inch, and an ON/OFF valve which contains an internal relief valve factory set between 12.5 and 14.5 tons ram force. A lever at the top of the machine is used to provide a rapid advance and release of the ram.
- Rated Tonnage - 12.5 tons.
- Clearance between adapters - 3 inches.
- Dimensions: 33" High x 16" Wide x 12.5" Deep
- Net Weight: 220 lbs (100 kg)
