Hydrostatic Test Stand, Hydraulic System Components

  • Hydrostatic Test Stand, Hydraulic System Components

    Hydrostatic Test Stand - P/N 9901HTX-100LR2-36x36x15, NSN 4910-01-678-0797

  • Hydrostatic Test Stand, Hydraulic System Components

    Include flared, flareless and NPT test adapter sets

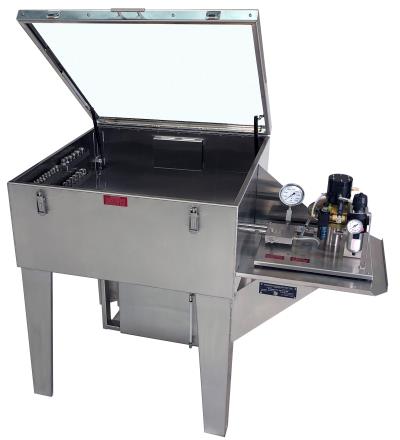

The 3 ft. wide x 3 ft. deep Hydrostatic Test Stand, Hydraulic System Components is utilized for pressure testing hose and tube assemblies as well as any component requiring hydrostatic testing in the integral safety test chamber.

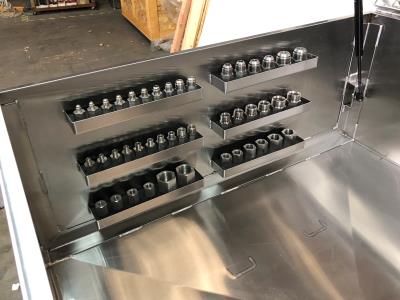

  • * For use with water or petroleum based oils. * Loop style manifold with 7/16-20 straight thread boss (MS33649-04) high pressure outlet and return ports. * Shielded rear venting. * 1 set 37º flared test adapter fittings for MS28741 hose ends, -3,-4,-5,-6,-8,-10,-12,-16. 2 each/set. * 1 set flare-less test adapter fittings for MS28762 hose ends, -3,-4,-5,-6,-8,-10,-12,-16. 2 each/set. * 1 set pipe test adapter fittings for male NPT hose ends, 1/8, ¼, 3/8, ½, ¾, and 1” NPT. 2 each/set. * Integral stainless shelves and foam retaining inserts for test fittings. * 1 each, ¼ NPT accessory port. * 10 gallon stainless reservoir mounted under the test chamber to accommodate fluid recycle. * Maximum Fluid Pressure 10,000 psi (15,000 psi option available). * Inlet power supply (air) 0-90 psi. * Factory set air pressure relief valve. Prevents over-pressurization of tester. * Output shutoff valve used to isolate unit under test and high pressure gauge from test system. * ASME B40.1 grade 1A hydraulic pressure gauge, 1% full scale accuracy ( 1/4% digital gauge option available). * Bleed Valve assist in bleeding air from system and releases pressure prior to disconnecting unit under test. * All stainless steel wetted components provide strength, durability, corrosion resistance. * Precision regulator allows precise control over a broad range hydrostatic pressures.
  • Dimensions: 57 x 38 x 45"
  • Net Weight: 278 lbs (126 kg)
